Fully Automatic LAB Pipetting System
Fully Automatic LAB Pipetting System
High technology robotic system

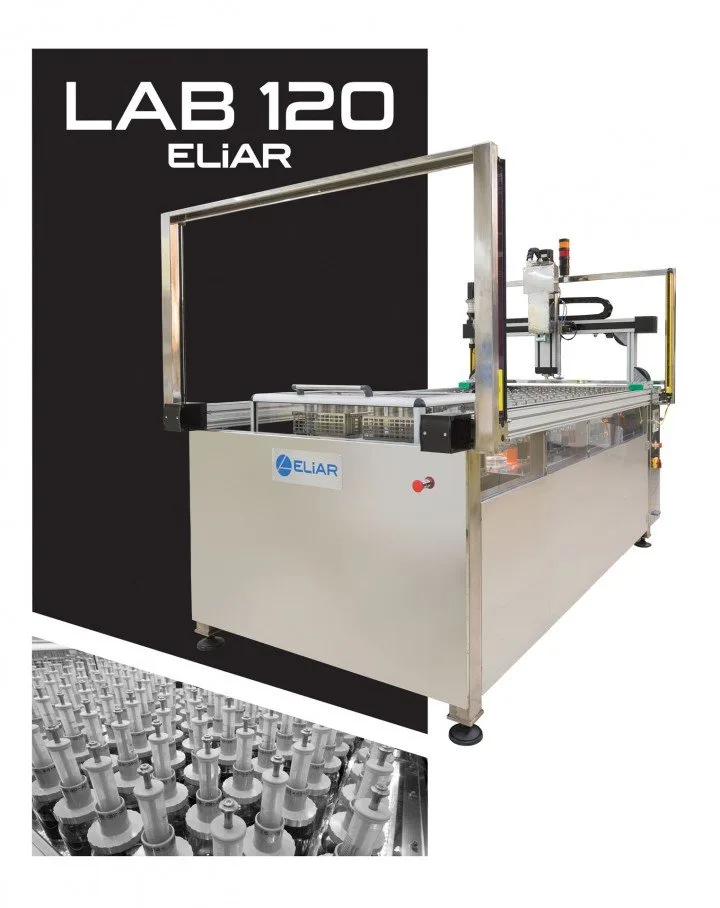

Preparing the correct recipe is the first step of lab-scale dyeing, and the right dyestuffs and chemicals must be mixed with high precision. LAB 120 is an automatic lab pipetting system built with advanced technology for laboratory processes.
- 120dyes
- 900processes
- 12simultaneous weighings
120 dyes, multi syringe system, high precision
The system holds up to 120 dyes and runs 900 processes with 12 simultaneous weighings.
It has an automatic calibration system and recalibrates itself at the end of each process. Each bottle has its own injector, which reduces impurities and faults.
LAB 120 was designed by ELİAR’s engineering and quality assurance teams, drawing on 35 years of experience. It makes dyeing recipe preparation faster and more precise.
Key features
Perfect design
LAB 120 is produced with a very specific study. It is workable with 3 axes, with irreproachable movement thanks to a double encoder on 2 axes. It is the exact solution for occlusion, paint collapse and cleaning problems that occur in the classic system.
- Compatible with all dye groups
- 3 axis, 2 encoder
Full automatic system
LAB 120 calibrates itself after each process. Weighing is not affected by environmental conditions thanks to superior software developed by Eliar. Entire processes are made with high precision.
- Automatic calibration
- Eliar LAB 120 special software
- Precision and fast
Daily 900 weighings
LAB 120 performs 900 weighing processes daily with high-quality equipment and software, smoothly. Scales are recalibrated in just 3 minutes by the included automatic calibration system.
- Daily 900 weighing process
- Automatic scale calibration in 3 minutes
Low maintenance cost
The LAB 120 system is produced without any additional part. It uses plastic injectors that are replaced inexpensively. Pipetting doesn’t require any cleaning process and it provides long term usage.
- Plastic injector
- Robotic arm integrated system
Ready to future
LAB 120 is compatible with Industry 4.0 and ready for the future. Eliar developed controlling, work tracking, reporting and automation software that lets you assess and trace your system in the finest detail.
- Industry 4.0 compatible
- Compatible with dye system
- Eliar software
Gravimetric and volumetric measurement
Volumetric technology speed and weighing technology precision are integrated into LAB 120. Not just the total amount: all dye weighing is done gravimetrically. It calibrates itself after each weighing process.
- No risk of air existing in pipette
- Weighing result is accurate
Brochure (PDF)
Questions about the LAB 120
Who supplies the LAB 120 in Pakistan?
EH Automation Services is the official representative of Eliar Elektronik in Pakistan. We supply the LAB 120 together with its installation, commissioning, operator training and after-sales support.
How do I get a quotation for the LAB 120?
Send the quotation form or call +92 322 6096616. Tell us which machines you run and what you want to automate. We usually reply within 24 hours and can arrange a visit to your mill before we quote.
Can the LAB 120 be added to machines we already run?
Yes. Eliar mechatronic are fitted to existing dyehouse equipment as well as to new lines. Our engineers check your machines first, then agree the scope of the installation with you.
