Konica Minolta: Colour measurement, handheld NIR and laboratory titrators

About Konica Minolta

Konica Minolta spectrophotometers give a dyehouse and its lab precise, repeatable colour measurements, so shade matching and quality control rest on numbers instead of the eye.

The CM-36d is a premium benchtop instrument that measures colour and gloss, with a sample-viewer camera and Numerical UV Control. The wider range covers benchtop and portable spectrophotometers, a chroma meter and a chlorophyll meter. ColorMission software is recommended with the instruments.

The range also includes the MicroNIR OnSite-W handheld near-infrared analyzer and the TitroLine 7750 and 5000 automatic titrators for the laboratory.

Konica Minolta range

CM-36d Benchtop spectrophotometer for colour and gloss

CM-36dBenchtop spectrophotometer for colour and gloss

  • Advanced optical system: accurate readings with minimal variation
  • Measures raw fabrics up to finished garments
  • Sample viewer camera and additional measurement aperture
  • Numerical UV Control (NUVC) and Wavelength Analysis and Adjustment (WAA)
  • USB and wireless data transfer
Geometry
d:8° sphere, SCI/SCE switchable, 3 apertures (SAV / MAV / LAV)
Wavelength range
360 to 740 nm
Reflectance range
0 to 200%, resolution 0.01%
Repeatability
Std. deviation ΔE*ab within 0.02
Light source
Pulsed xenon lamp
Integrating sphere
Ø152 mm (6")
Gloss
60°, white LED, 0 to 200 GU
Size
248 x 250 x 498 mm
MicroNIR OnSite-W Ruggedized handheld spectrometer for rapid material analysis

MicroNIR OnSite-WRuggedized handheld spectrometer for rapid material analysis

  • Battery-powered handheld near-IR analyzer that connects wirelessly to a tablet PC
  • Compact, ruggedized and ergonomic: for the field or the manufacturing floor
  • Narrow design prevents temperature vibration; forced convection air flow for equal temperature distribution
  • Adjustable sample width tension, adjustable upper and lower nozzles, roof exhaust fan
  • 7" colour touch LCD with real-time status and temperature graphs; precise PID temperature control
Applications
Poly, cotton knit, woven, spandex, nylon, non-woven, leather and thicker samples
Standard accessories
Adjustable nozzles, exhaust fan, touch LCD display, PID temperature control
Software
User-friendly interface for real-time monitoring and precise control

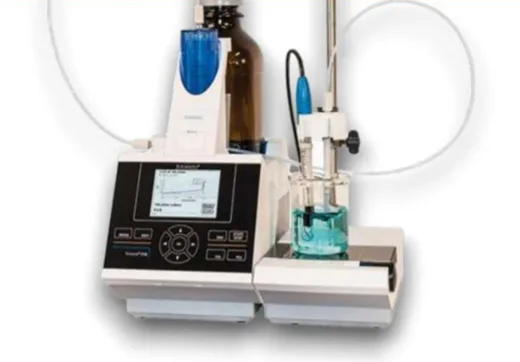

TitroLine 7750 Motorized piston burette and automatic titrator (SI Analytics)

TitroLine 7750Motorized piston burette and automatic titrator (SI Analytics)

  • Excellent motorized piston burette for dispensing liquids and titrants
  • Versatile automatic titrator for potentiometric and volumetric titrations

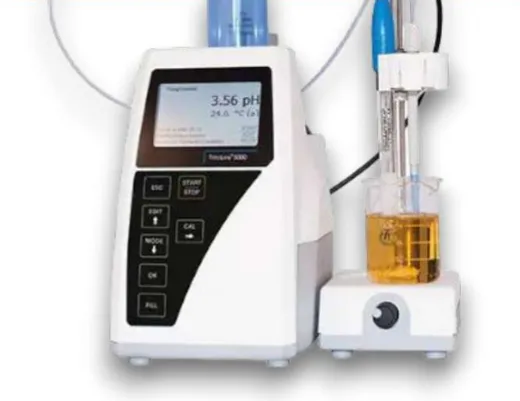

TitroLine 5000 Automatic titrator with optional colour probe (SI Analytics)

TitroLine 5000Automatic titrator with optional colour probe (SI Analytics)

  • Successor to the TitroLine easy, with ease of use and new features
  • Optional colour probe shows colour changes on screen in real time when the critical point is reached

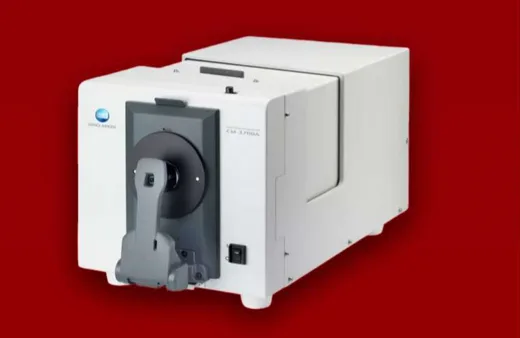

CM-3700A Benchtop spectrophotometer

CM-3700ABenchtop spectrophotometer

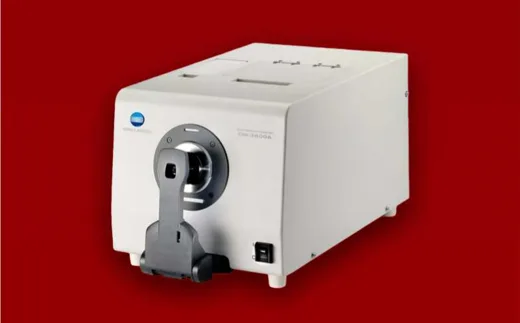

CM-3600A Benchtop spectrophotometer

CM-3600ABenchtop spectrophotometer

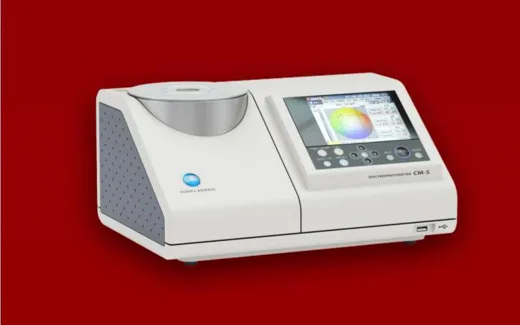

CM-5 Benchtop spectrophotometer

CM-5Benchtop spectrophotometer

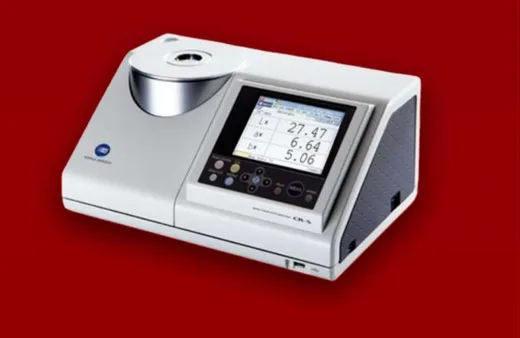

CR-5 Benchtop spectrophotometer

CR-5Benchtop spectrophotometer

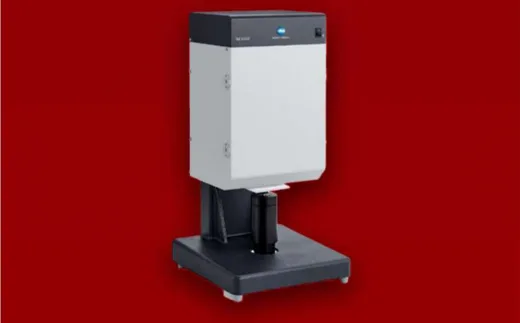

CM-3630 Benchtop spectrophotometer

CM-3630Benchtop spectrophotometer

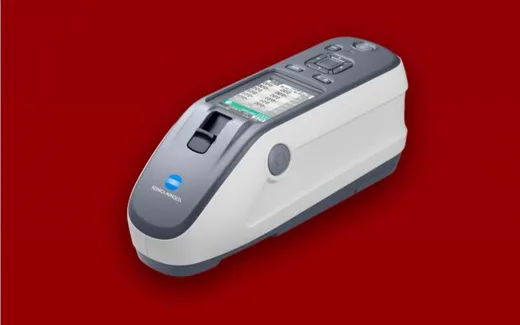

CM-26dG Portable spectrophotometer

CM-26dGPortable spectrophotometer

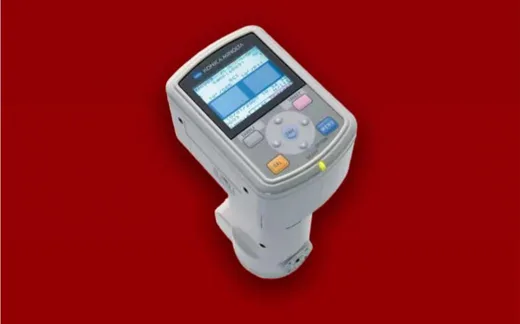

CM-700d Portable spectrophotometer

CM-700dPortable spectrophotometer

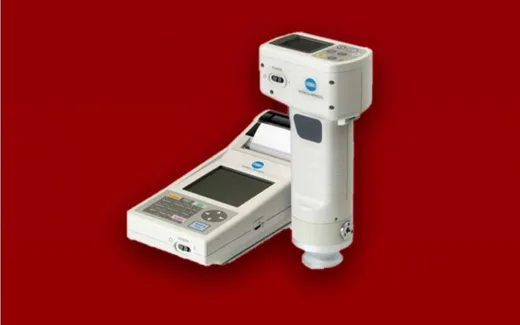

CR-700 Chroma meter

CR-700Chroma meter

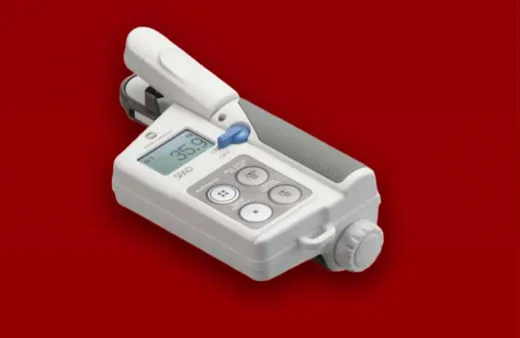

SPAD-502Plus Chlorophyll meter

SPAD-502PlusChlorophyll meter

Brochures (PDF)

Download PDFCM-36d spectrophotometer brochureDownload PDFKonica Minolta product listDownload PDFMicroNIR OnSite-W brochureDownload PDFTitroLine 7750 and 5000 brochure
Get a quotation All products

Questions about Konica Minolta

Which Konica Minolta instrument is for textile colour control?

The CM-36d benchtop spectrophotometer measures colour and gloss from raw fabric to finished garments. Portable models such as the CM-26dG and CM-700d suit measurement on the floor.

What fabrics can the MicroNIR OnSite-W analyze?

Poly, cotton knit, woven, spandex, nylon, non-woven fabrics, leather and thicker samples.

What is a TitroLine used for?

It is an automatic titrator and piston burette that doses titrant and finds the end point in potentiometric and volumetric titrations in the lab.

How accurate is the CM-36d?

Repeatability is within 0.02 standard deviation ΔE*ab, with a 360 to 740 nm wavelength range.
