Supermat laboratory dyers for shade matching

SandoLab Supermat laboratory dyers by Copower: AP series and TP / TP PLUS for constant or rising temperature dyeing at low liquor ratios. Supplied in Pakistan by EH Automation Services.

SandoLab by Copower: Supermat laboratory dyers for shade matching

About SandoLab by Copower

SandoLab Supermat laboratory dyers by Copower Technology (Taiwan) are multi-purpose lab dyeing machines with a patented heat-conduction design and a precise dyeing temperature controller.

They suit constant-temperature and rising-temperature dyeing at high or low liquor ratios, with energy-saving, eco-friendly operation. Programs can hold 100 recipes of 20 steps each, and the machines are certified to ISO 9001:2015.

SandoLab models

Supermat AP series Individually heated and monitored dye pots (AP-82 and AP-121)

Supermat AP seriesIndividually heated and monitored dye pots (AP-82 and AP-121)

  • Each dye pot has its own heater and temperature sensor, so there is no temperature difference between pots
  • Forward and reverse rotation is programmable
  • HMI touch screen with live pot status, running log and USB program transfer
  • Liquor ratio 1:5 to 1:20; fibre 5 to 20 g
  • Can connect to a central supervisor system
AP-82
16 dye pots, 2 dyeing areas, 5 kW, 1080 x 620 x 1617 mm, 200 kg
AP-121
12 dye pots, 1 dyeing area, 4.5 kW, 930 x 715 x 725 mm, 150 kg
Temperature
20 to 140 °C; 100 programs of 20 steps
Power
220 V, 50-60 Hz; stainless steel frame and casing

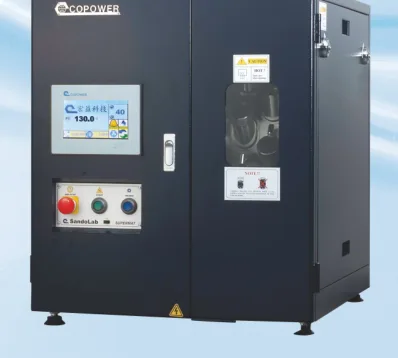

Supermat TP Laboratory dyer for constant or rising temperature dyeing

Supermat TPLaboratory dyer for constant or rising temperature dyeing

  • Combines the advantages of infrared and glycerol dyeing machines
  • Electric heating with air cooling for fast temperature rise and drop
  • Liquor ratios from 5 to 30 and 5 to 20 g fibre
  • Intelligent chemical lid for adding powder or liquid chemicals during dyeing
  • No wrinkles on polyester; programmable bi-directional rotation
Programs
100 programs, 20 steps
Power
4.5 kW max, 220 V single phase, 50/60 Hz
Rotary speed
60 rpm max
Size
670 x 720 x 750 mm
Weight
About 135 kg
Colours
Blue or white casing

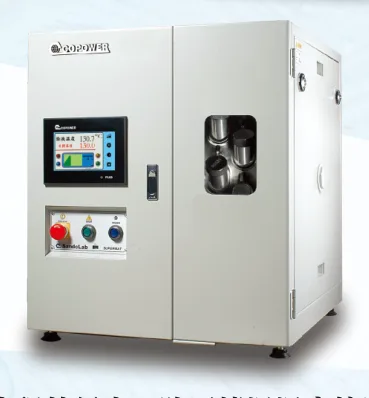

Supermat TP PLUS TP with direct measurement of the water temperature inside the dye pot

Supermat TP PLUSTP with direct measurement of the water temperature inside the dye pot

  • Measures drum and dye-pot water temperature at the same time
  • Auto-tuning temperature control while running
  • Temperature difference between pots within 1 °C
  • Pot temperature curve is shown and recorded; step-dyeing function
Programs
100 programs, 20 steps
Power
5 kW max, 220 V single phase, 50/60 Hz
Size
670 x 720 x 750 mm
Weight
About 135 kg

Brochures (PDF)

Download PDFSandoLab Supermat AP seriesDownload PDFSandoLab Supermat TPDownload PDFSandoLab Supermat TP PLUS
Get a quotation All products

Questions about SandoLab by Copower

What is a laboratory dyer used for?

A lab dyer dyes small fabric or yarn samples to match shades before production, with the same temperature curve you plan to run on the machine.

What is the difference between TP and TP PLUS?

TP PLUS also measures and records the water temperature inside the dye pot directly, keeping pot-to-pot difference within 1 °C.
