Programmable Automation Controller
Programmable automation controller for data collection, monitoring and industrial control.
Programmable automation controller

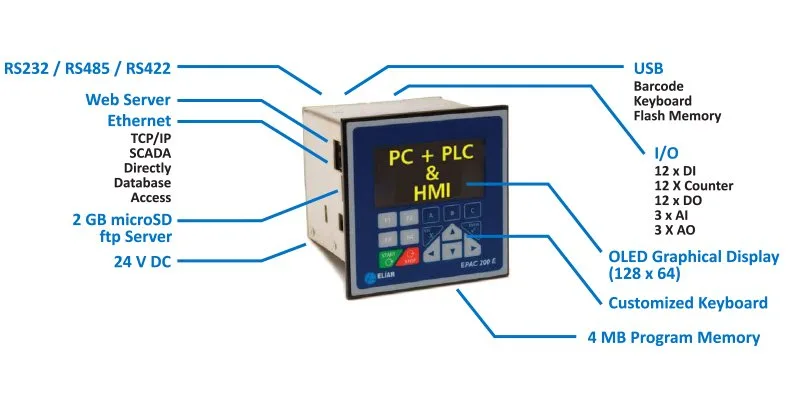

EPAC 200 E is a microprocessor based controller for data collection (measuring, monitoring, logging and reporting) and industrial control. Its modular design lets you add I/O modules to increase the number of digital and analog inputs and outputs.
Programs are made and the process is monitored on a graphical screen, and firmware can be upgraded remotely. It is built to control textile dyeing machines. Designed by ELİAR from 35 years of engineering experience, with both hardware and software produced by ELİAR.

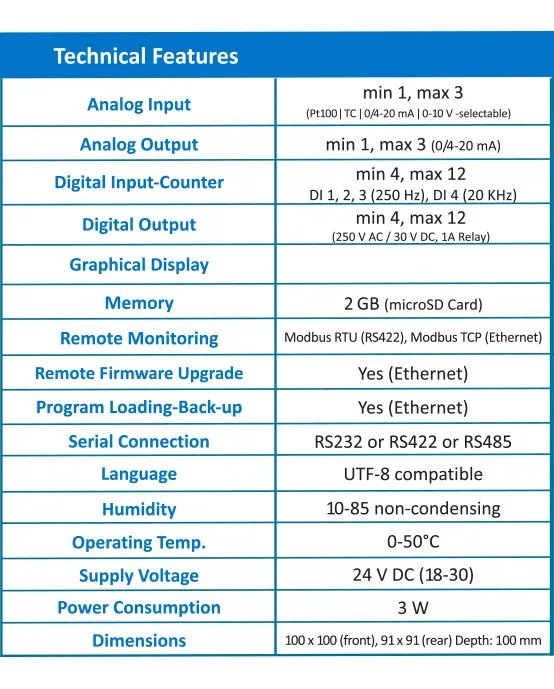

Technical specifications
- Analog input
- min 1, max 3 (Pt100, TC, 0-10 V selectable)
- Analog output
- min 1, max 3 (0/4-20 mA)
- Digital input-counter
- min 4, max 12; DI 1, 2, 3 (250 Hz), DI 4 (20 kHz)
- Digital output
- min 4, max 12 (250 V AC / 30 V DC, 1 A relay)
- Graphical display
- 128x64 OLED
- Memory
- 2 GB (microSD card)
- Remote monitoring
- Modbus RTU (RS422), Modbus TCP (Ethernet)
- Remote firmware upgrade
- Yes (Ethernet)
- Program loading and back-up
- Yes (Ethernet)
- Serial connection
- RS232, RS422 or RS485
- Language
- UTF-8 compatible
- Humidity
- 10-85 % non-condensing
- Operating temperature
- 0-50 °C
- Supply voltage
- 24 V DC (18-30)
- Power consumption
- 3 W
- Dimensions
- 100x100 (front), 91x91 (rear), depth 100 mm
Questions about the EPAC 200 E
Who supplies the EPAC 200 E in Pakistan?
EH Automation Services is the official representative of Eliar Elektronik in Pakistan. We supply the EPAC 200 E together with its installation, commissioning, operator training and after-sales support.
How do I get a quotation for the EPAC 200 E?
Send the quotation form or call +92 322 6096616. Tell us which machines you run and what you want to automate. We usually reply within 24 hours and can arrange a visit to your mill before we quote.
Can the EPAC 200 E be added to machines we already run?
Yes. Eliar devices are fitted to existing dyehouse equipment as well as to new lines. Our engineers check your machines first, then agree the scope of the installation with you.
