Temperature-Time Ramping Controller
Microprocessor based ramping controller, designed mainly to automate textile dyeing machines.
Temperature-time profile controller
TBB 100 is a microprocessor based ramping controller, especially designed and developed for the automation of textile dyeing machines. It also suits any industrial application where temperature ramping control is needed.

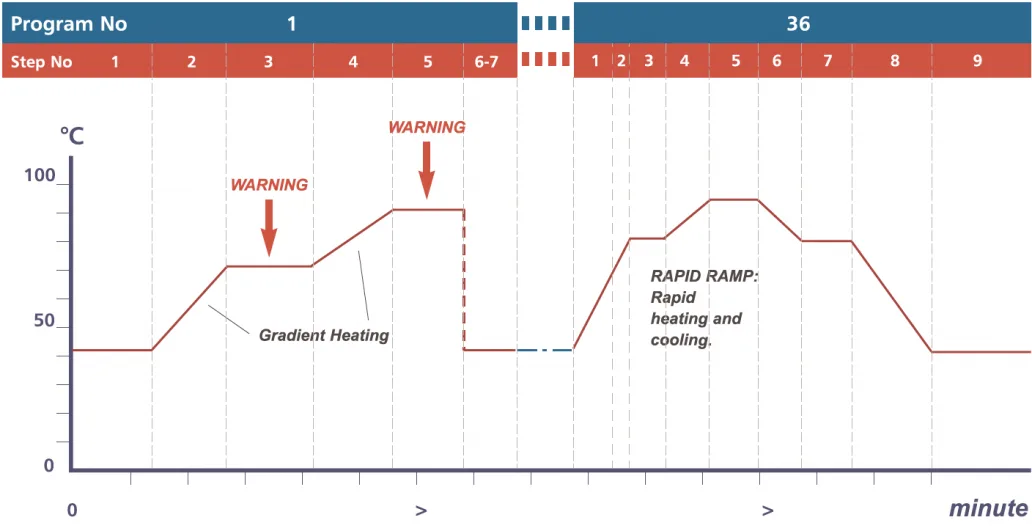

Each step in a program has two settings, duration in minutes and temperature in °C, and temperature control is proportional to time. Designed by ELİAR from 35 years of engineering experience, with both hardware and software produced by ELİAR.

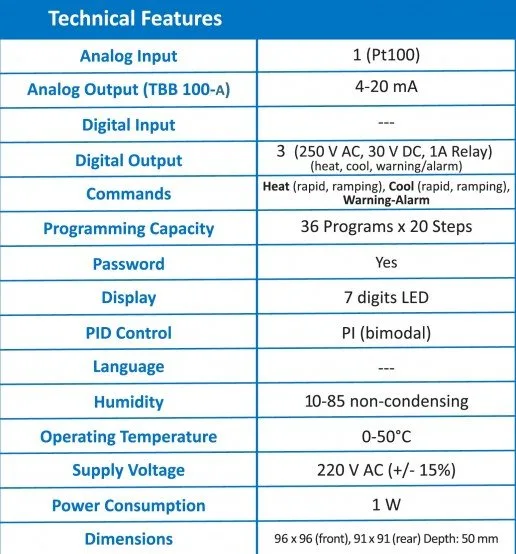

Technical specifications
- Analog input
- 1 (Pt100)
- Analog output (TBB 100-A)
- 4-20 mA
- Digital input
- -
- Digital output
- 3 (250 V AC, 30 V DC, 1 A relay) for heat, cool, warning/alarm
- Commands
- Heat (rapid, ramping), cool (rapid, ramping), warning-alarm
- Programming capacity
- 36 programs x 20 steps
- Password
- Yes
- Display
- 7 digits LED
- PID control
- PI (bimodal)
- Humidity
- 10-85 % non-condensing
- Operating temperature
- 0-50 °C
- Supply voltage
- 220 V AC (+/-15 %)
- Power consumption
- 1 W
- Dimensions
- 96x96 (front), 91x91 (rear), depth 50 mm
Questions about the TBB 100 – TBB 100A
Who supplies the TBB 100 – TBB 100A in Pakistan?
EH Automation Services is the official representative of Eliar Elektronik in Pakistan. We supply the TBB 100 – TBB 100A together with its installation, commissioning, operator training and after-sales support.
How do I get a quotation for the TBB 100 – TBB 100A?
Send the quotation form or call +92 322 6096616. Tell us which machines you run and what you want to automate. We usually reply within 24 hours and can arrange a visit to your mill before we quote.
Can the TBB 100 – TBB 100A be added to machines we already run?
Yes. Eliar devices are fitted to existing dyehouse equipment as well as to new lines. Our engineers check your machines first, then agree the scope of the installation with you.
