Temperature-Time Profile Controller
Microprocessor based ramping controller with a graphical programming and monitoring interface.
Temperature-time profile controller

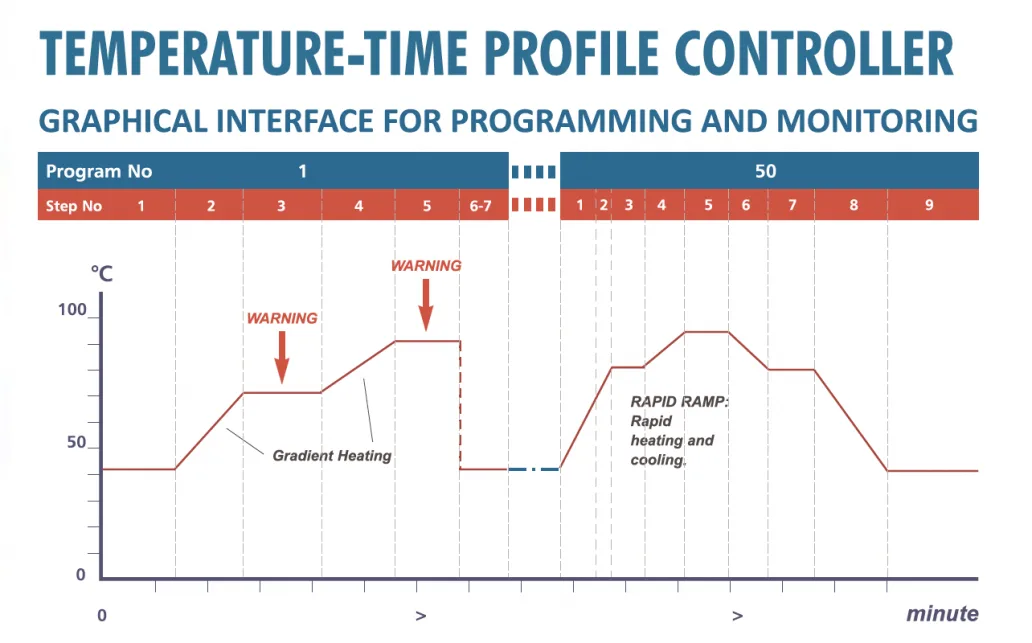

T 200 is a microprocessor based ramping controller, especially designed and developed for the automation of textile dyeing machines. Its graphical interface is used both for programming and for monitoring the dyeing process.
It is not limited to dyeing machines: it suits a wide range of industrial applications where temperature ramping control is needed. Designed by ELİAR from 35 years of engineering experience, with both hardware and software produced by ELİAR.

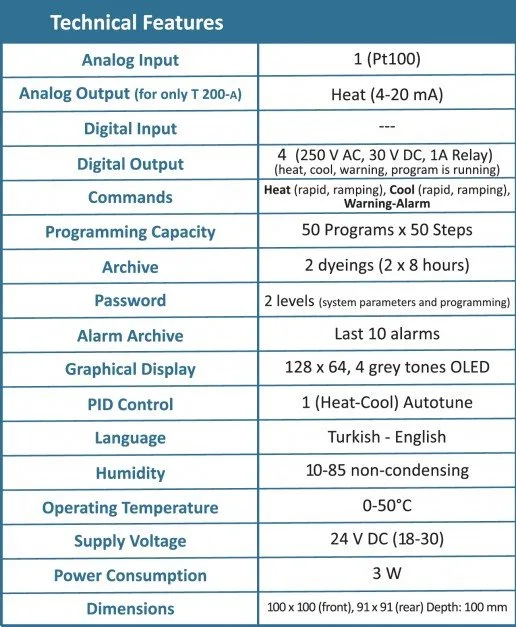

Technical specifications
- Analog input
- 1 (Pt100)
- Analog output (T 200-A only)
- Heat (4-20 mA)
- Digital output
- 4 (250 V AC, 30 V DC, 1 A relay) for heat, cool, warning, program running
- Commands
- Heat (rapid, ramping), cool (rapid, ramping), warning-alarm
- Programming capacity
- 50 programs x 50 steps
- Archive
- 2 dyeings (2 x 8 hours)
- Password
- 2 levels (system parameters and programming)
- Alarm archive
- Last 10 alarms
- Graphical display
- 128x64, 4 grey tones OLED
- PID control
- 1 (heat-cool), autotune
- Language
- Turkish, English
- Humidity
- 10-85 % non-condensing
- Operating temperature
- 0-50 °C
- Supply voltage
- 24 V DC (18-30)
- Power consumption
- 3 W
- Dimensions
- 100x100 (front), 91x91 (rear), depth 100 mm
